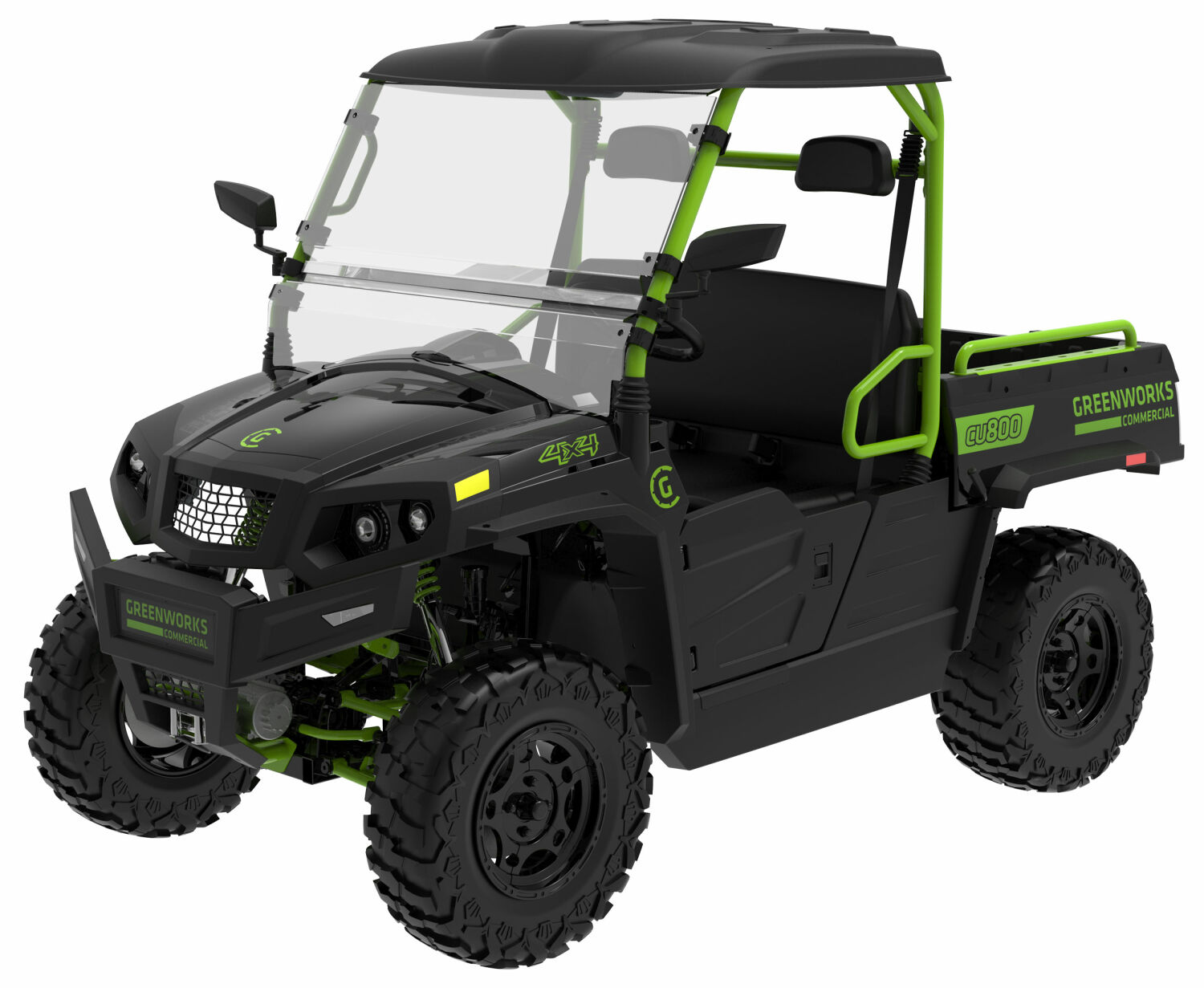

82V Utility Vehicle CU800 16kWh

POA

The combination of battery, motor, control and charging systems operating in sync, deliver unmatched power and performance compared to any other petrol or battery powered product. With a network of controllers at its centre, this unit’s nerve system manages the battery, powerful brushless motors and vast information between the vehicle and the user with intelligence, efficiency and responsiveness. This creates a closed loop system that automatically reacts and responds to every changing conditions without requiring user action.

Users can safely and confidently tackle slopes of up to 20° and accelerate to a maximum speed of 47kmph using the intelligent control system which automatically adjusts to various terrain conditions and ensures exceptional traction control and handling in any environment.

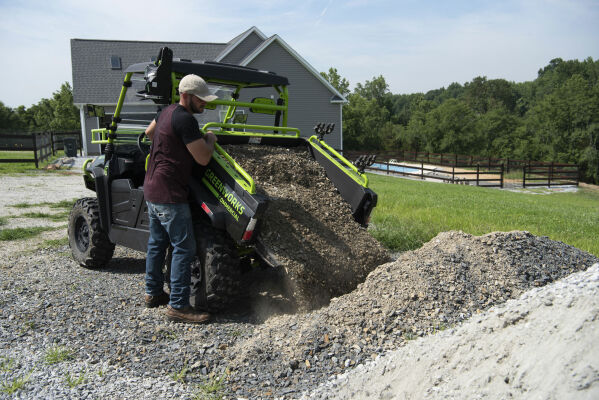

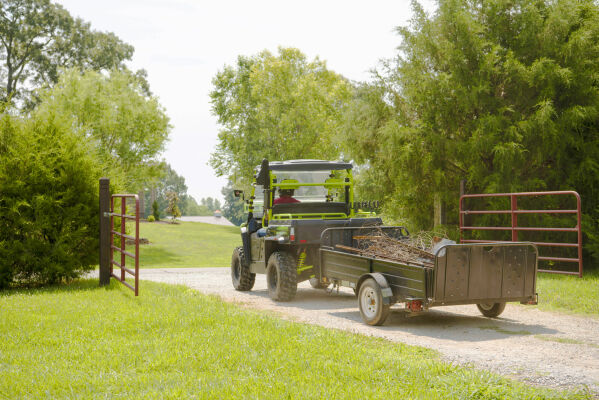

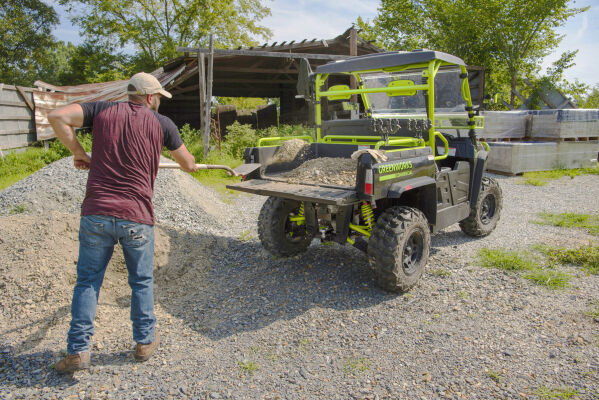

The 254mm (10″) ground clearance and astounding 184cm (72.5″) wheelbase allows for easy handling in any off-road situation and the robust 250kg (550lb) spring assisted dump bed, 454kg (1,000lb) payload capacity, 680kg (1,500lb) rear towing capacity and 1,134kg (2,500lb) front hitch winch make light work of any hauling or transporting job.

Videos
Specifications
?title=0&byline=0&portrait=0" width="640" height="360" frameborder="0" allow="autoplay; fullscreen; picture-in-picture" allowfullscreen>

Specifications

Model

CU800SB

Voltage

82V

Motor Type

AC induction

Max Power Rating

15kW

Wheelbase

184cm (72.5")

Machine Dimensions (mm, L x W x H)

3,000 x 1600 x 2050

Ground Clearance

254mm (10")

Payload Capacity

454kg (1,000lbs)

Tow Capacity

680kg (1,500lbs)

Horsepower

31hp equivalent

Engine Displacement

496cc equivalent

IPX Rating

4

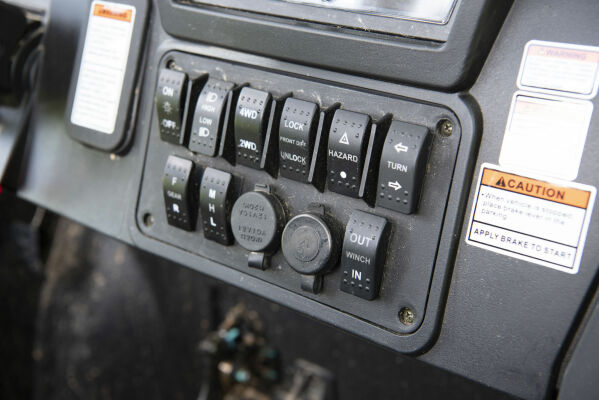

Multi-mode Switch

L/M/H

Main Gearcase

Direct drive

Wheel Drive System

4WD

Front Diff Lock

Electric control

Suspension System

Independent. A-Arm Type

Brakes

(front/rear) Hydraulic disc

Cargo Bed Capacity

250kg (550lbs)

Cargo Bed Dimension (mm, L x W x D)

889 x 1,143 x 305 (35" x 45" x 12")

Ground Speed

Up to 47kmph

Tyres/Wheels

24×9-14 front 24×11-14 rear

Runtime/Range

up to 120km

Weight (w/battery)

795kg

Battery Voltage

82V

Battery Capacity

16kWh

Battery Weight

84.8kg

Charger Charge Watts

1.5kw

Charger Charge Time

11 hours

Charger Weight

2.8kg
