2WD Ride-on Mower

Specifications

• Dimension (L x W x H) (mm)

  1880 X 920 X 905

• Ground clearance (mm)

  115

• Wheelbase (mm)

  1155

• Machine mass (kg)

  255

• Front wheel tread (mm)

  790

• Rear wheel tread(mm)

  735

• Cutting width (mm)

  800 (32")

• Cutting blade components

  Heavy duty flail blades.

• Fixing of cutting blade

  Lock Nut Type

• Cutting height (mm)

  20 to 90 (Stepless adjustment)

• Work clutch

  V Belt tension type (interlocked with brake)

• Working efficiency

  80 - 51 (a/h)

• Main Transmission

  HST Stepless Shifting, Rear Wheel Drive

• Brake

  Drum brake

• Forward (km/h)

  0-10.0

• Reverse (km/h)

  0-6

• Front wheel

  3.5-7 （φ350mm)

• Rear wheel

  16Ｘ7.00-8（φ400mm)

• Steering method

  Round steering wheel with knob, rack & pinion mechanism

• Manufacturer

  Kawasaki

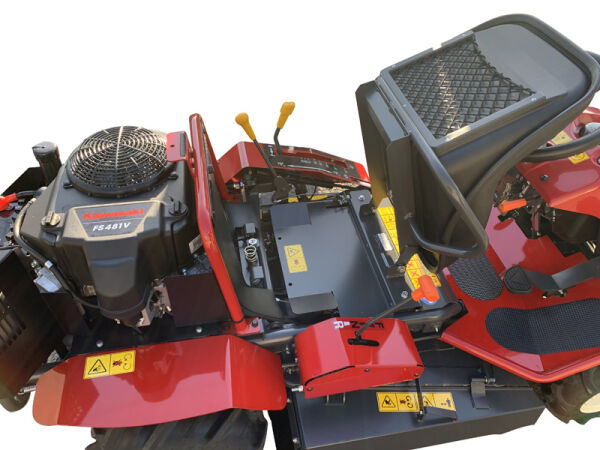

• Engine Model

  FS481V (Air cooled, V-type, 2 cylinder OHV gasoline engine)

• Fuel tank capacity (L)

  14

• Steering wheel vertical adjustment (mm)

  3 levels

• Incline Meter

  Yes

• Hour Meter

  Yes

• Oil warning Lamp

  Yes

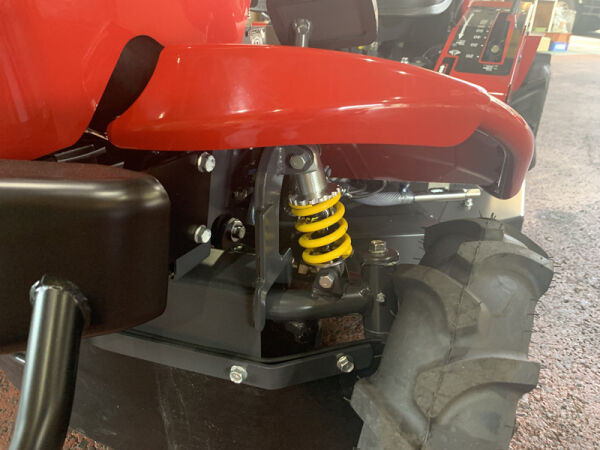

• Front Suspension

  Yes

• Seat

  Yes
