4WD Mower
Specifications
-
Dimension (L x W x H) (mm)
1965 X1075 X 955
-
Wheelbase (mm)
1320
-
Machine mass (kg)
360
-
Cutting width (mm)
950
-
Cutting height (mm)
35 to 125
-
Cutting blade type X Q'ty
Free knife x 2 pcs
-
Fixing of cutting blade
Lock Nut Type
-
Work clutch
V Belt (interlocked with brake)
-
Driving system
V-belt (Brake interlock)
-
Cutting Width
38” (950mm)
-
Brake
Internally expanding
-
Forward (km/h)
0-10.0
-
Reverse (km/h)
0-8.5
-
Front wheel
4.00-7（φ400mm)
-
Rear wheel
17Ｘ8.00-8（φ440mm)
-
Driving system
On-Demand 4WD
-
Main transmission
Hydrostatic (13 cc, with Charge Pump)
-
Operation
Pedal, Lever
-
Differential lock
Standard
-
Min. turning radius (mm)
2200
-
Max. inclination (°)
25
-
Manufacturer/Model
KAWASAKI FS 691 V
-
Maximum Output
17.5 / 20.8
-
Fuel
Unleaded gasoline
-
Fuel tank capacity (L)
14 (with Fuel Gauge)
-
Seat adjustment
Forward and Back
-
Head light
LED
-
Blade Cover
Yes
-
Hour meter
Yes
-
Oil lamp warning
Yes
-
Towing hook
Yes
Applications
-
Rough Terrain and Slopes: Clearing overgrown areas, maintaining steep hillsides, wet, muddy conditions.
-
Heavy Vegetation: Cut grass, broom, gorse, and saplings, making them useful for clearing overgrown properties.
-
Steep Slopes: Mowing up to 25-degree slopes.
-
General Lawn Maintenance: Also suitable for general lawn mowing on flatter ground.
Optional Accessories
-
Bullbar, Folding ROPS Frame for added safety and protection.
Features
-

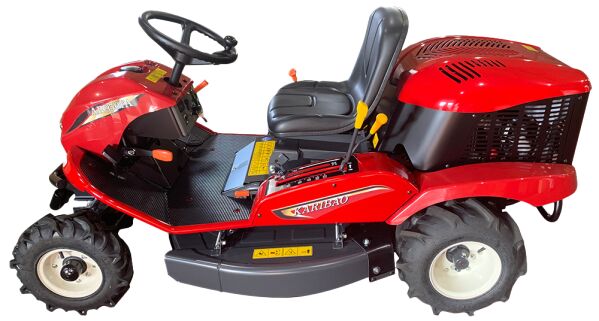

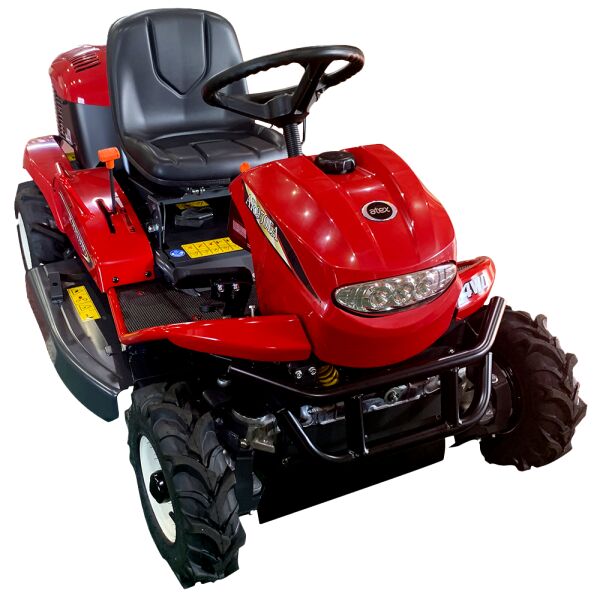

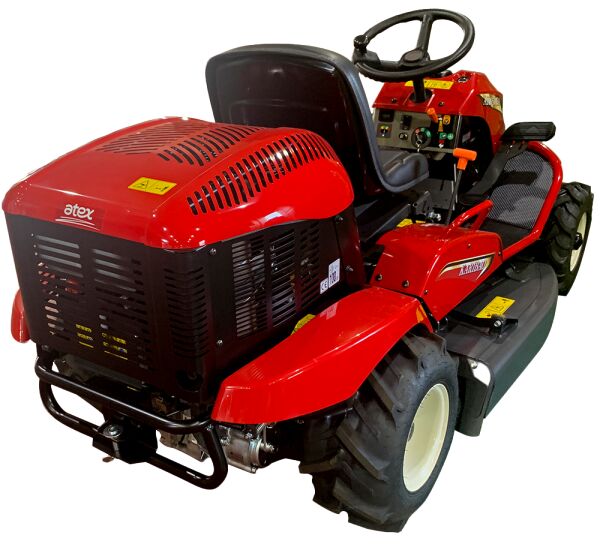

Atex AR950FA 4WD Ride on Mower.
-

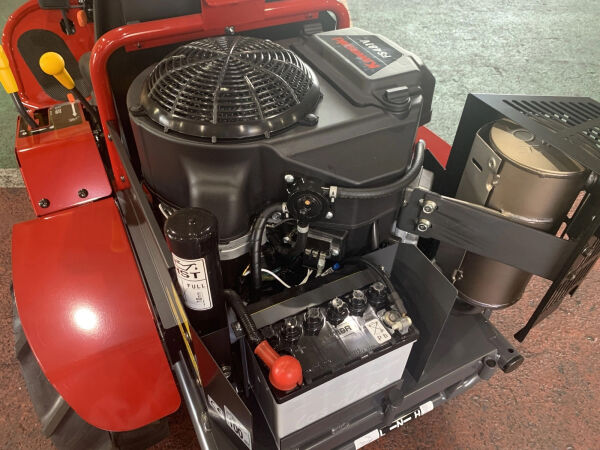

Kawasaki FS691 V Twin engine.
-
Capable of cutting grass, broom, gorse and saplings.
-
Able to operate in wet muddy and hilly conditions.
-
Clear overgrown areas of your property safely and with ease, due to excellent traction from tractor style mud grip tyres.
-
Heavy duty flail blades.
-
Diff lock and 4WD on demand
-
Fabricated chassis.
-
Step-less blade height adjustment.
-
Expanding shoe emergency and park brake.
-
Hand and foot operated travel control.
-
Light steering with tight turning radius.
-
Comfortable Adjustable Seats.
-

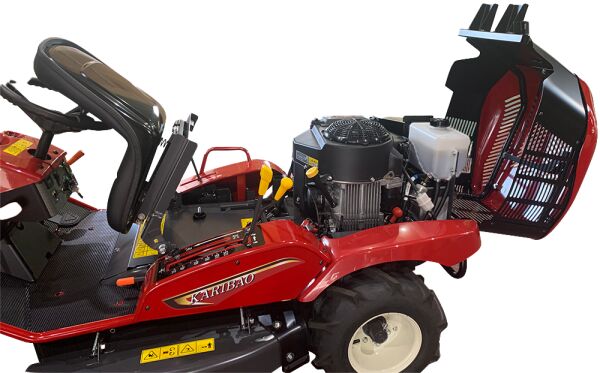

Easy access maintenance points.
-
Low centre of gravity.
-

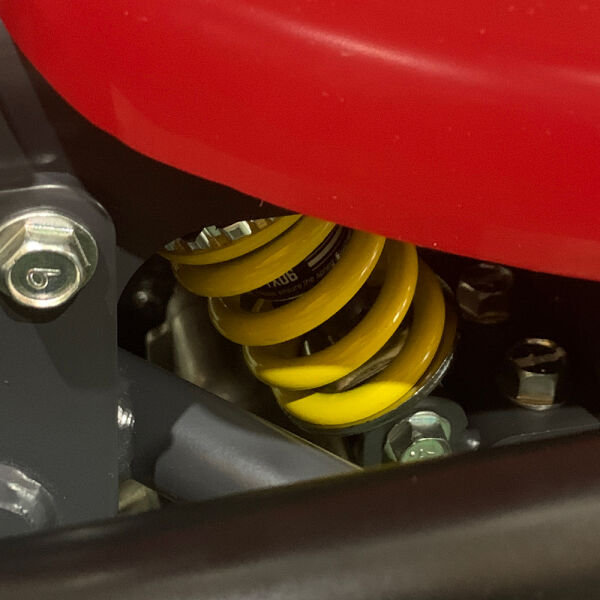

Industry first front suspension
-
These machines are exceptionally well built and easy to maintain and operate.
-
They will cut vegetation and go places you won't believe but they will also cut your front lawn.
-
Made in Japan.
