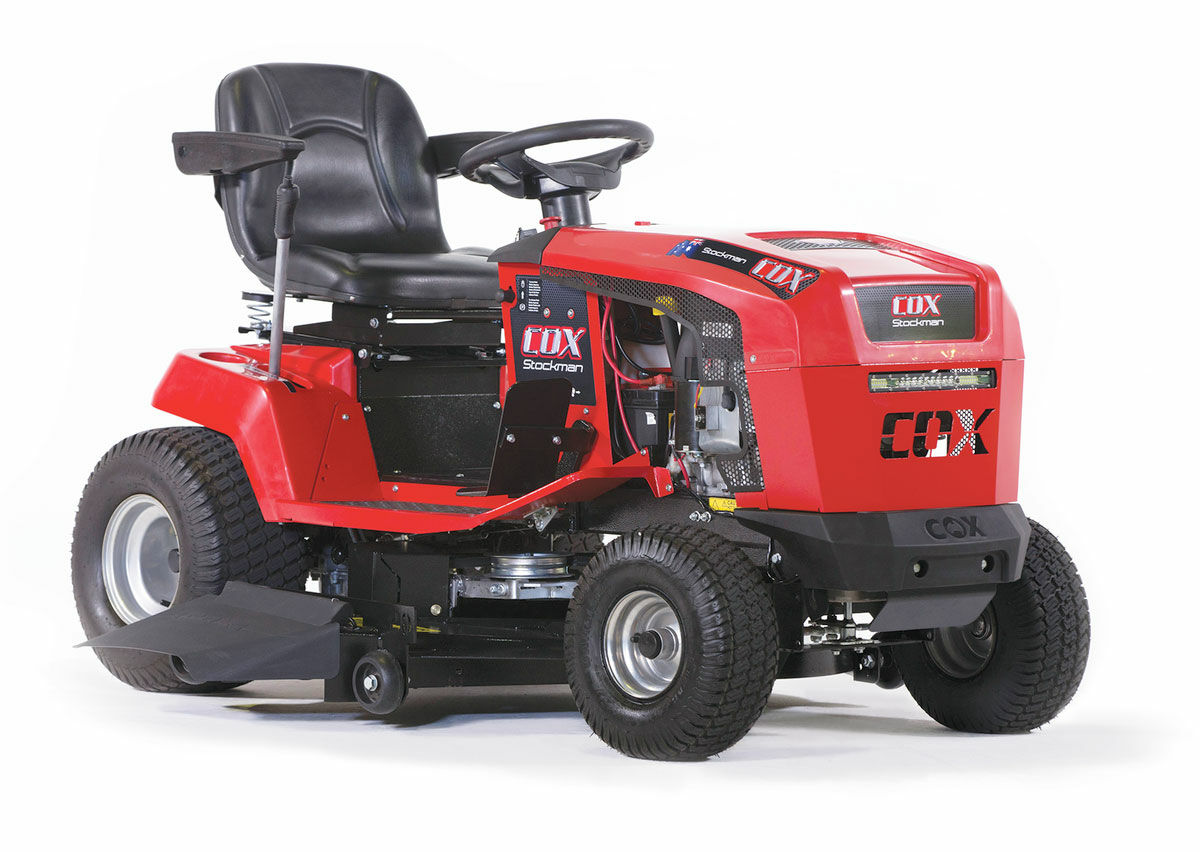

Stockman Pro

Specifications

• Engine

• Model

  CTL20B35 / CTL20B40 / CTL24C35 / CTL24C40

• Engine

  B&S 20HP Intek V-Twin / COX 24HP V-Twin

• Cylinders

  V-Twin

• Displacement

  656cc / 680cc

• Oil Capacity

  2.0 L

• Engine Warranty

  2 Yrs B&S Covered / 3 Yrs COX Covered

• Drive

• Drive Type

  Hydrostatic with Auto Locking Diff

• Drive Model

  Tuff Torq K46EH (Auto Diff Lock)

• Drive Warranty

  2 Yrs Conditional

• Ground Speed

  FWD 0–9 KPH / REV 0–6 KPH

• Cutting System

• Cutter Deck Width

  35" (890 mm) / 40" (1016 mm)

• Blade Engagement

  Ogura Electromagnetic Clutch

• Cutter Belt Type

  Premium B-Section

• Height Range

  20 mm–75 mm (40 mm–95 mm optional raise kit)

• Blade Type

  Heavy Duty Swing Back

• Chassis

• Tyres

  15×6.00–6 (F), 18×9.5–8 (R)

• Headlight

  Standard

• Seat

  Premium Highback Seat

• Seat Adjustment

  Fingertip Adjustment

• Hour Meter

  Standard

• Construction

  Fabricated Steel

• Steering Wheel

  Premium Steering Wheel

• Dimensions

• Length

  1720 mm

• Width

  885 mm / 1250 mm

• Weight

  230 kg / 238 kg

• Warranty

• Warranty

  5 Yrs Conditional
